Qalabka xakamaynta eexda tooska ah ee Rof Bias Point ee modulator-ka lithium niobate MZ
Muuqaalka
Hababka hawlgalka eexda badan ayaa la heli karaa (Quad+)↔Afar-jibbaar, Ugu Yar↔Ugu badnaan)
Isgaarsiinta taxanaha ah, hagaajinta ganaaxa otomaatiga ah ee barnaamijaysan iyo qodobbada qufulka eexda
Qalabka gudaha ee laambaduhu waxay taageeraan noocyo kala duwan oo hirarka ah
Xirmada moduleka, korontada adapter-ka
Codsiga
Isgaarsiinta fiber-ka indhaha
Footoonka Microwave-ka
Codsiga iftiinka la riixay
Bandhigga

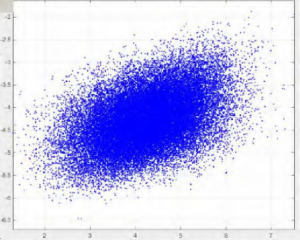

Jaantuska 1. Xidigta (iyada oo aan lahayn kontaroole)
Jaantuska 2. Xidigiska QPSK (oo leh koontaroole

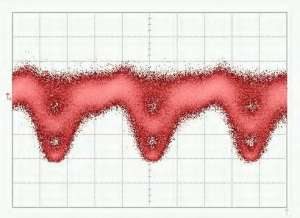

Jaantuska 3. Qaabka Isha QPSK
Jaantuska 5. Qaabka Xiddigaha 16-QAM
Jaantuska 4. QPSK Spectrum
Jaantuska 6. 16-QAM Spectrum
Tilmaamaha
| Argument | Ugu yaraan | Caadi ah | Ugu badnaan | Cutubka |
| Halbeegga indhaha | ||||
| Awoodda indhaha ee gelinta 1* | 0 | 13 | dBm | |
| Mowjadda hawlgalka 2* | 780 | 1650 | nm | |
| interface fiber indhaha | FC/APC | |||
| Halbeegga korontada | ||||
| Danabka eexda | -10 | 10 | V | |
| Saamiga baabi'inta beddelka 3* | 20 | 25 | 50 | dB |
| Gobolka xiran qaabka | Togan ama taban | |||
| Qaabka qufulka | Quad+ (Quad-) amaUgu yaraan(Ugu badnaan) | |||
| Qoto dheer oo wax lagu beddelo (QUAD) | 1 | 2 | % | |
| Qoto dheer oo wax lagu beddelo (Null) | 0.1 | % | ||
| Soo noqnoqoshada tijaabada (QUAD) | 1K | Hz | ||
| Soo noqnoqoshada tijaabada (NULL) | 2K | Hz | ||
| Halbeegga caadiga ah | ||||
| Cabbirrada (dhererka)× ballaca× dhumuc) | 120×70×34 mm | |||
| Heerkulka hawlgalka | 0 - 70℃ | |||
Fiiro gaar ah:
1* waxaa loola jeedaa gelinta baaxadda awoodda ee module-ka marka wax soo saarka modulator-ku uu ugu badan yahay. Xakamaynta barta hoose ee modulator-ka oo leh saamiga baabi'inta sare, awoodda gelinta waa in si habboon loo kordhiyaa; Iyada oo la raacayo shuruudaha gelinta awoodda gaarka ah, waxaad hagaajin kartaa tilmaamaha isku xidhka gudaha iyo qalabka ogaanshaha, fadlan la tasho iibka marka aad dalbanayso.
2* Markaad dalbanayso, fadlan qeex mowjadda shaqada, taas oo u baahan in la hagaajiyo iyadoo loo eegayo mowjadda shaqada.
Saamiga baabi'inta 3* sidoo kale wuxuu ku xiran yahay heerka saamiga baabi'inta beddelka ee modulator-ka laftiisa.
Cabbirka sawirka (mm)
Macluumaadka dalbashada
*Haddii aad leedahay shuruudo gaar ah, fadlan la xiriir shaqaalahayaga iibka
| ROF | ABC | Nooca modulator-ka | XX | XX | XX |
| Module-ka xakamaynta barta eexda ee otomaatiga ah | MZ---M-Zmodulator | Mowjadda shaqaynta: 15---1550nm 13---1310nm 10---1064nm 08---850nm 07---780nm | Nooca faybarka: S-- Faybarka indhaha ee hal qaab ah P - Faybar ilaalinaya kala-goynta | Isku-xirka fiber-ka indhaha: FA—FC/APC FP---FC/UPC |
Is-dhexgalka Isticmaalaha
| Koox | Hawlgalka | Sharaxaad |
| Dib u celi | Geli boodhadhka oo soo saar 1 ilbiriqsi ka dib | Dib u deji kontaroolaha |
| Awood | Isha korontada ee koontaroolaha eexda | V- wuxuu isku xiraa elektroodhka taban ee korontada |
| V+ wuxuu isku xiraa elektroodka togan ee korontada | ||
| Dekedda dhexe waxay ku xiran tahay elektroodka dhulka | ||
| Polar1 | PLRI: Geli ama soo saar boodhadhka | boodbood la'aan: Habka aan waxba ahayn; oo leh boodbood: Habka ugu sarreeya |
| PLRQ: Geli ama soo jiid jumper-ka | boodbood la'aan: Habka aan waxba ahayn; oo leh boodbood: Habka ugu sarreeya | |
| PLRP: Geli ama soo saar boodhadhka | boodbood la'aan: Qaabka Q+; oo leh boodbood: Qaabka Q- | |
| LED | Si joogto ah u shaqeeya | Ka shaqaynta xaalad deggan |
| Daar ama daar 0.2s kasta | Ka shaqaynta xogta iyo raadinta barta xakamaynta | |
| Shid ama dami 1dii ilbiriqsiba mar | Awoodda indhaha ee la gelinayo aad bay u daciifsan tahay | |
| Daar ama daar 3dii ilbiriqsiba mar | Awoodda indhaha ee la gelinayo aad bay u xoog badan tahay | |
| PD2 | Ku xidho photodiode-ka | Dekedda PD waxay isku xirtaa Cathode-ka photodiode-ka |
| Dekedda GND waxay isku xirtaa Anode-ka photodiode-ka | ||
| Voltages-ka Eexda | In, Ip: Danab eexasho loogu talagalay I gacanta | Ip: Dhinaca togan; Gudaha: Dhinaca taban ama dhulka |
| Qn, Qp: Danabka ee gacanta Q | Qp: Dhinaca togan; Qn: Dhinaca taban ama dhulka | |
| Pn, Pp: Danabka ee gacanta P | Pp: Dhinaca togan; Pn: Dhinaca taban ama dhulka | |
| UART | Ku shaqee koontaroolaha iyada oo loo marayo UART | 3.3: Danabka tixraaca 3.3V |
| GND: Dhulka | ||
| RX: Helitaanka kontaroolaha | ||
| TX: Gudbinta kontaroolaha |
1 Polar waxay ku xiran tahay calaamadda RF ee nidaamka. Marka uusan jirin calaamadda RF ee nidaamka, polar-ku waa inuu noqdaa mid togan. Marka calaamadda RF ay leedahay baaxad ka weyn heer cayiman, polar-ku wuxuu ka beddeli doonaa togan una beddelan doonaa taban. Waqtigan, Null point iyo Peak point way isku beddeli doonaan. Q+ point iyo Q- point sidoo kale way isku beddeli doonaan. Polar-ku wuxuu u oggolaanayaa isticmaalaha inuu beddelo polar-ka.
si toos ah iyada oo aan la beddelin goobaha hawlgalka.
2Hal doorasho oo keliya ayaa la dooran doonaa inta u dhaxaysa isticmaalka photodiode-ka koontaroolaha ama isticmaalka modulator photodiode-ka. Waxaa lagu talinayaa in loo isticmaalo photodiode-ka koontaroolaha tijaabooyinka Shaybaarka laba sababood awgood. Marka hore, photodiode-ka koontaroolaha wuxuu hubiyay tayada. Marka labaad, way fududahay in la hagaajiyo xoogga iftiinka la geliyo. Haddii aad isticmaaleyso photodiode-ka gudaha ee modulator-ka, fadlan hubi in hadda soo saarista ee photodiode-ku ay si adag ugu egtahay awoodda la gelinayo.
